• Audio system feature, 6-speaker system
• Door locks, power
• Floor covering, color-keyed carpeting
• Lighting, interior, center dome
• Seats, front bucket

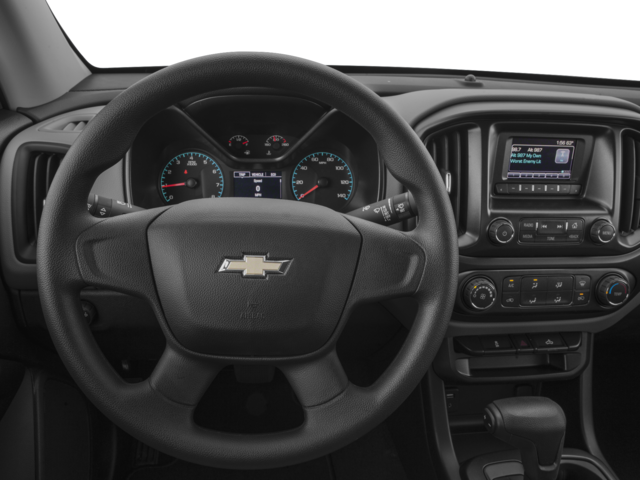

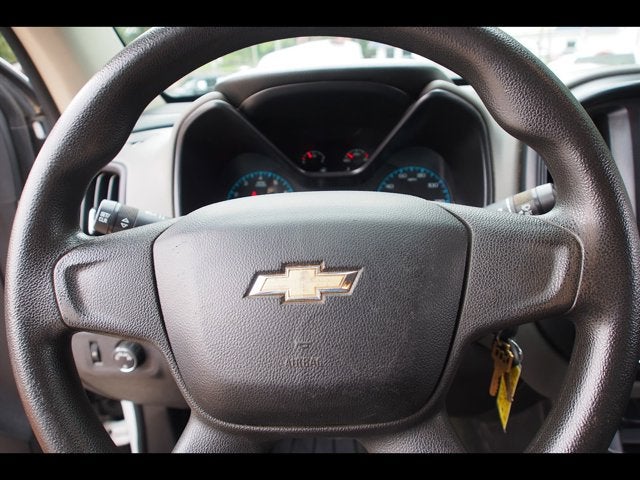

• Steering wheel, urethane

• Brakes, 4-wheel antilock, 4-wheel disc
• Rear wheel drive

• Daytime Running Lamps
• StabiliTrak, stability control system
• Tire Pressure Monitor System
• Traction control, electronic

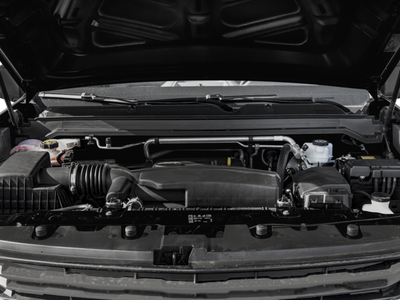

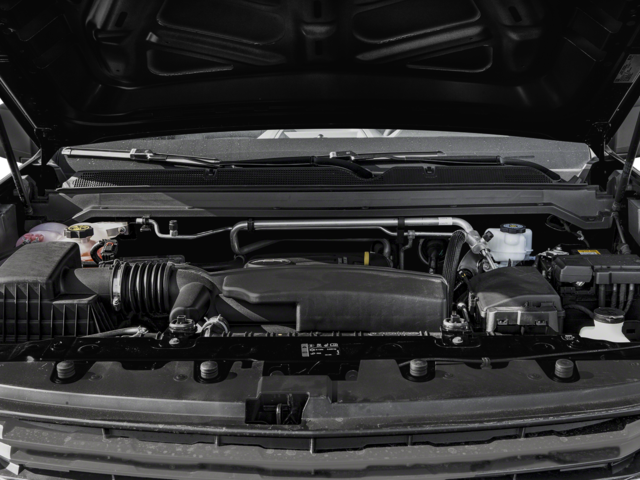

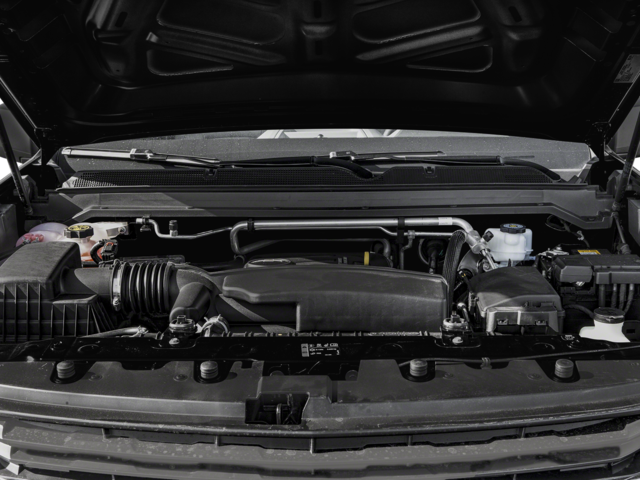

ENGINE, 2.5L I4, DI, DOHC, VVT

• (200 hp [149.0 kW] @ 6300 rpm
• 191 lb-ft of torque [259 N-m] @ 4400 rpm) (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRE, COMPACT SPARE T175/80R18, BLACKWALL

• (STD)

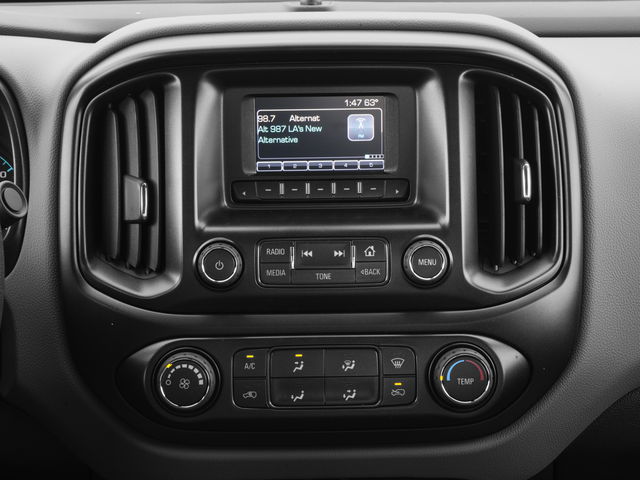

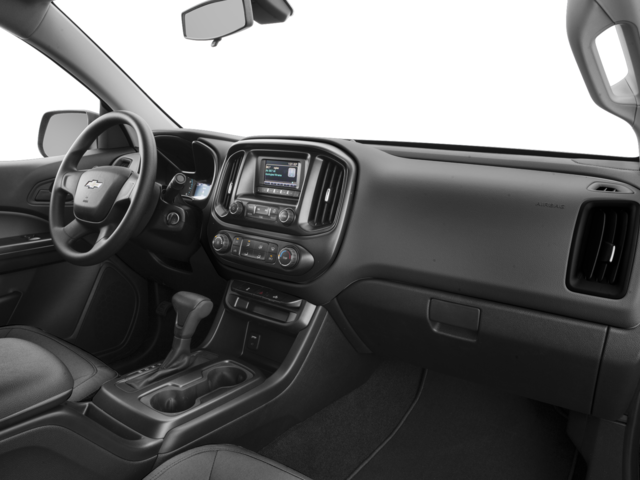

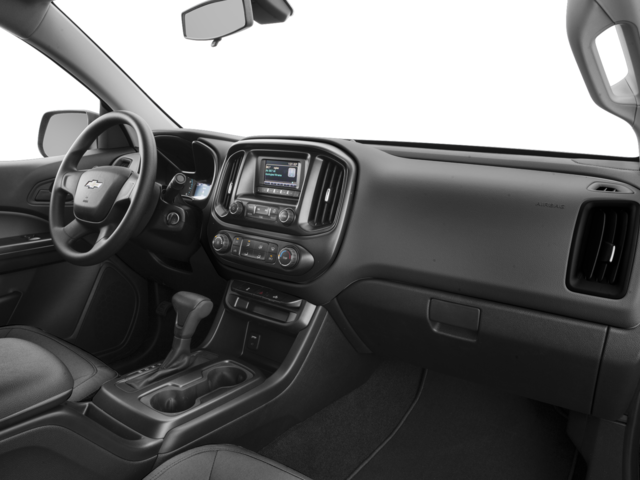

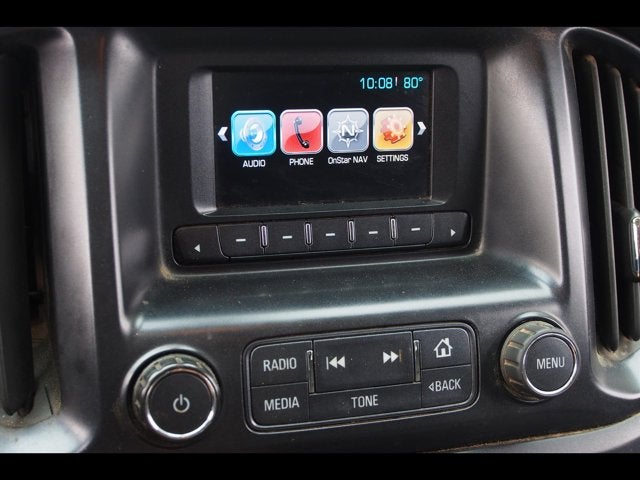

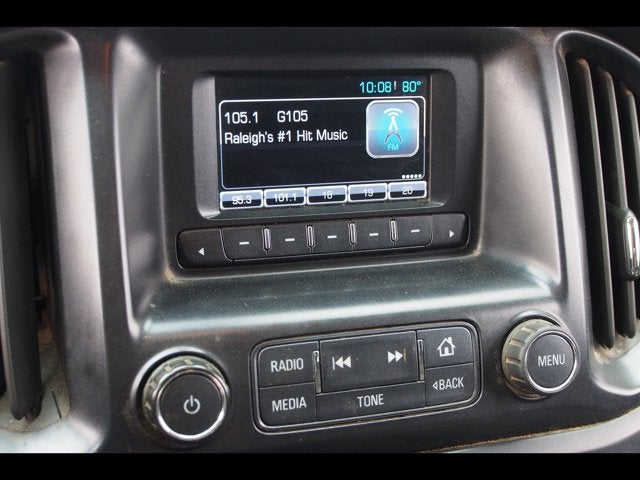

AUDIO SYSTEM, CHEVROLET MYLINK, 4.2" DIAGONAL COLOR SCREEN WITH AM/FM STEREO

• USB port
• auxiliary jack
• Bluetooth® streaming audio for music and most phones
• hands-free smartphone integration
• Pandora Internet radio and voice-activated technology for radio and phone (Includes (UE1) OnStar and (VV4) OnStar 4G LTE Wi-Fi hotspot.)

GVWR, 5400 LBS. (2449 KG)

• (STD)

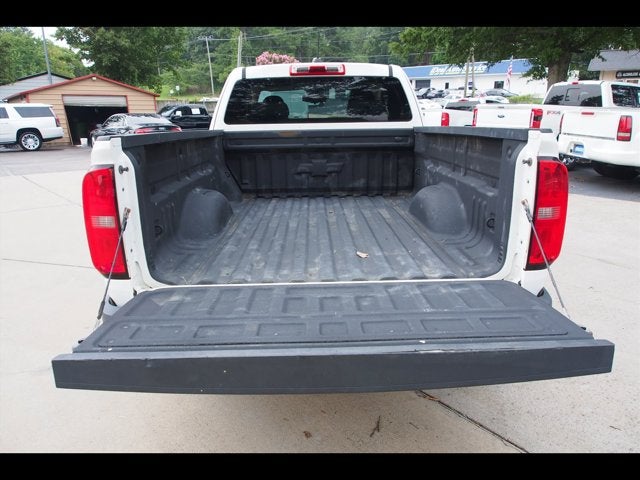

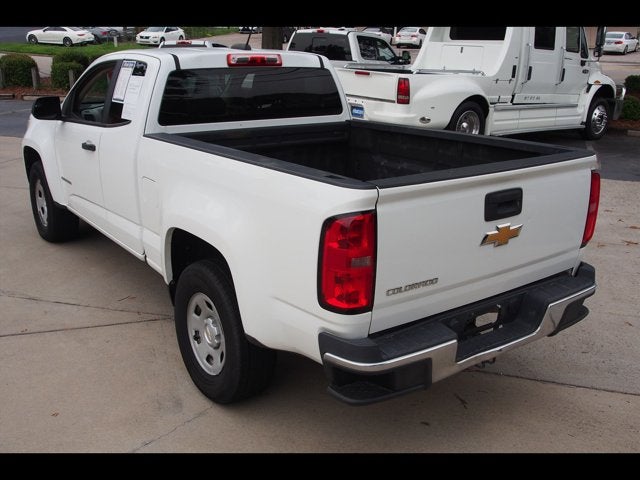

PICKUP BOX

• (STD)

ONSTAR GUIDANCE PLAN FOR 6 MONTHS

• including Automatic Crash Response
• Stolen Vehicle Assistance
• Roadside Assistance
• Turn-by-Turn Navigation
• Advanced Diagnostics and more (trial excludes Hands-Free Calling)

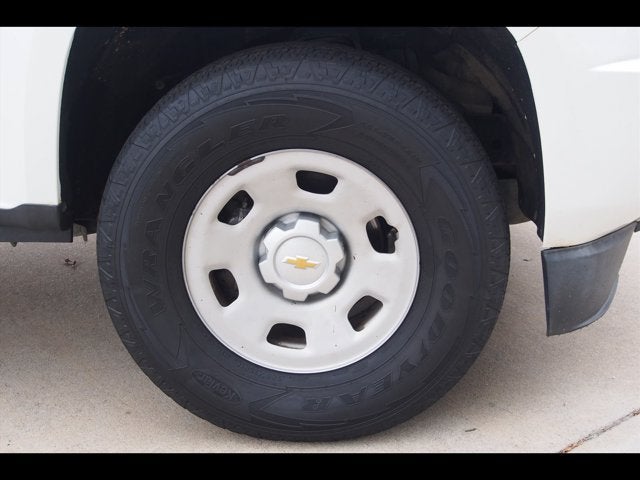

WHEELS, 16" X 7" (40.6 CM X 17.8 CM) ULTRA SILVER METALLIC STEEL

• (STD)

ONSTAR WITH 4G LTE

• and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds
• includes 3GB or 3 months OnStar Data Trial (whichever comes first)

TIRES, P265/70R16 ALL-SEASON, BLACKWALL

• (STD)

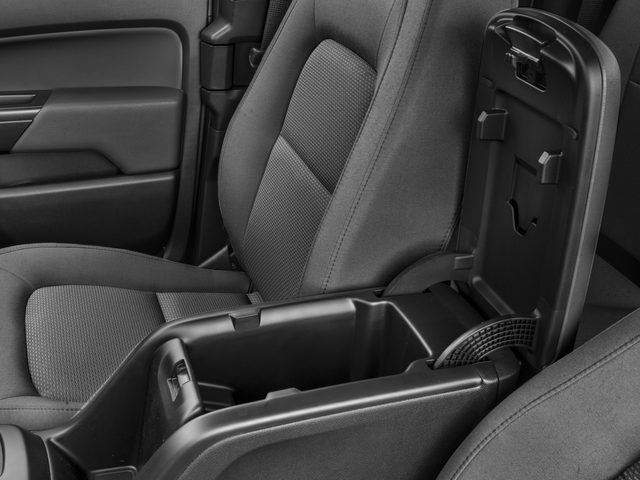

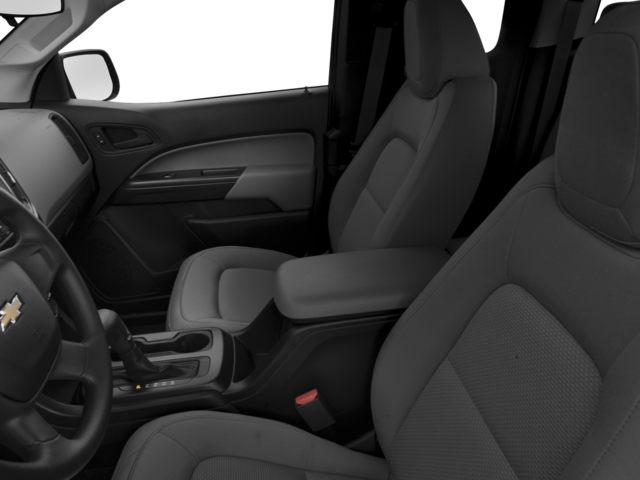

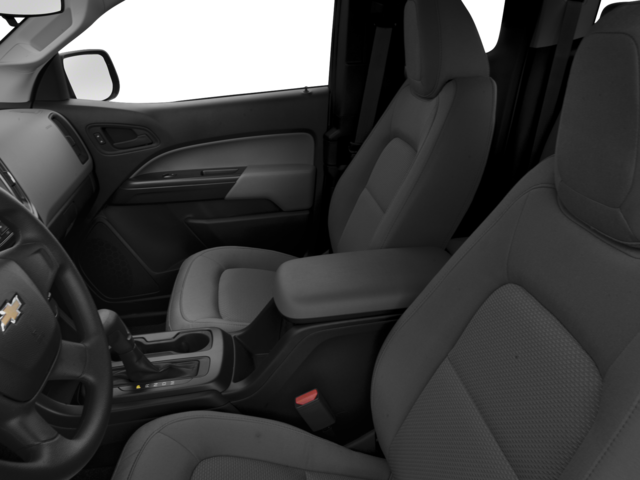

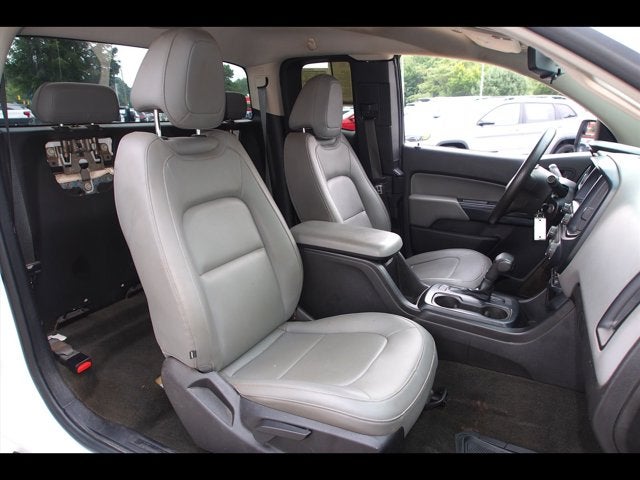

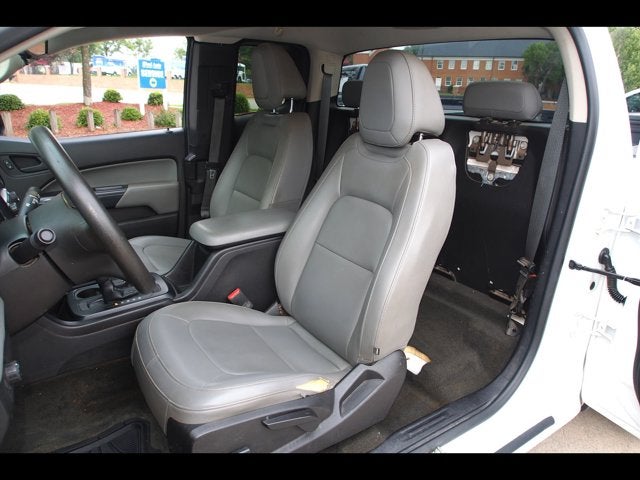

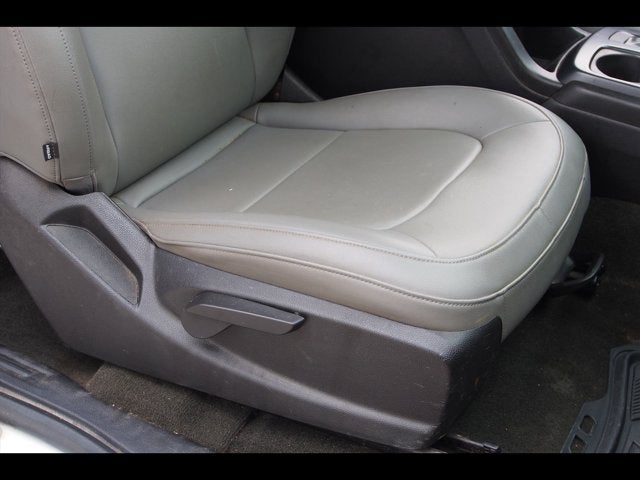

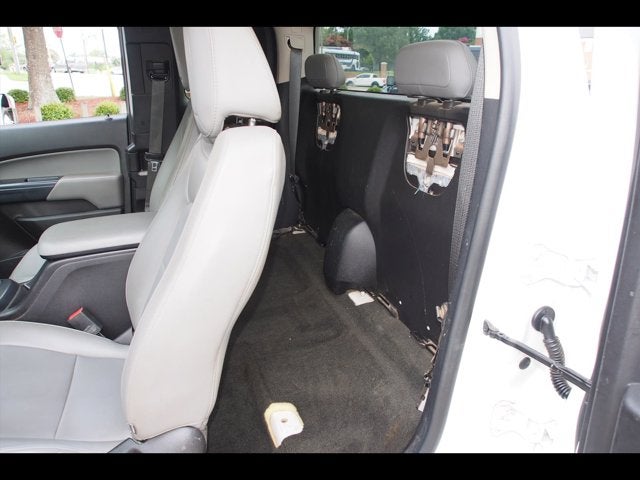

SEATS, FRONT BUCKET

• (STD)

• ENGINE 2.5L I4 DI DOHC VVT (200 hp [149.0 kW] @ 6300 rpm 191 lb-ft of torque [259 N-m] @ 4400 rpm) (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TRANSMISSION 6-SPEED AUTOMATIC HMD 6L50
• REAR AXLE 4.10 RATIO
• JET BLACK/DARK ASH VINYL SEAT TRIM
• TIRE COMPACT SPARE T175/80R18 BLACKWALL (STD)
• BEDLINER SPRAY-ON BLACK WITH CHEVROLET LOGO
• AUDIO SYSTEM CHEVROLET MYLINK 4.2" DIAGONAL COLOR SCREEN WITH AM/FM STEREO USB port auxiliary jack Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio and voice-activated technology for radio and phone (Includes (UE1) OnStar and (VV4) OnStar 4G LTE Wi-Fi hotspot.)
• GVWR 5400 LBS. (2449 KG) (STD)
• PICKUP BOX (STD)
• OnStar Equipped (subscription required)
• WHEELS 16" X 7" (40.6 CM X 17.8 CM) ULTRA SILVER METALLIC STEEL (STD)
• OnStar Equipped (subscription required)
• SUMMIT WHITE
• TIRES P265/70R16 ALL-SEASON BLACKWALL (STD)
• SEATS FRONT BUCKET (STD)
• Rear Wheel Drive
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Temporary Spare Tire
• Automatic Headlights
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• Power Driver Seat
• Floor Mats
• Floor Mats
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Immobilizer

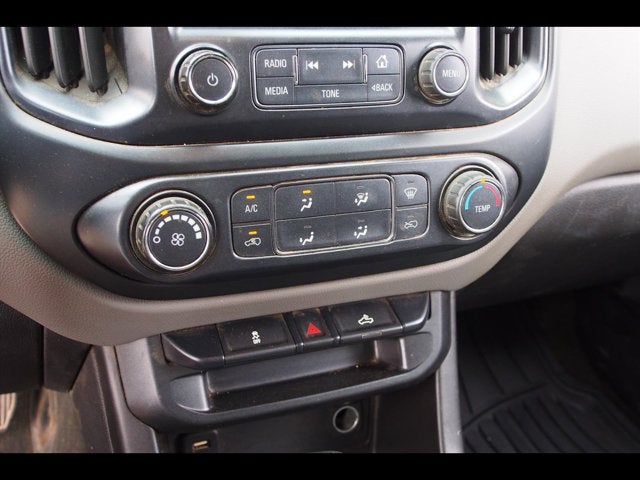

• A/C
• Passenger Vanity Mirror
• Traction Control
• Stability Control
• Traction Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor

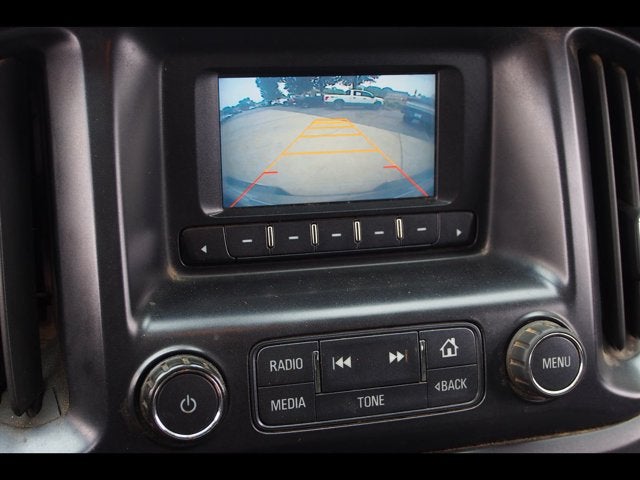

• Back-Up Camera
• Tire Pressure Monitor

• Vehicle
• Number of Passenger Doors: 2
• Mileage
• Fuel Economy Est-Combined (MPG): 22
• Fuel Economy Est-Combined (MPG): 22
• EPA Fuel Economy Est - City (MPG): 20
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 27
• EPA Fuel Economy Est - Hwy (MPG): 26
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2900
• Gross Axle Wt Rating - Rear (lbs): 3300
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 5400
• Gross Combined Wt Rating (lbs): 8500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
• Maximum Trailering Capacity (lbs): 7700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 4.10
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.2 x 1.0
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 0.7
• Tires
• Front Tire Order Code: QJJ
• Rear Tire Order Code: QJJ
• Spare Tire Order Code: QDC
• Front Tire Size: P265/70R16
• Rear Tire Size: P265/70R16
• Spare Tire Size: T175/80R18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 18 x 4.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 128.30
• Length, Overall w/o rear bumper (in): - TBD -
• Width, Max w/o mirrors (in): 74.30
• Height, Overall (in): 70.40
• Overhang, Front (in): 36.90
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.40
• Ground Clearance, Rear (in): 8.40
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 74.00
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 57.80
• Cargo Box Width @ Wheelhousings (in): 44.40
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 49.90
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 41.40
• Front Leg Room (in): 45.00
• Front Shoulder Room (in): 57.50
• Front Hip Room (in): 55.00

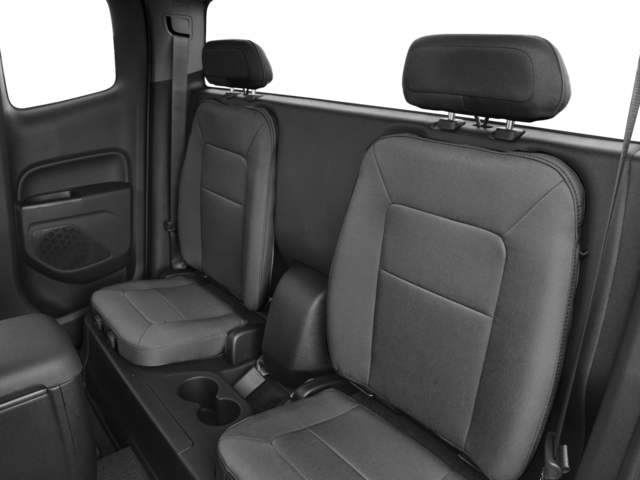

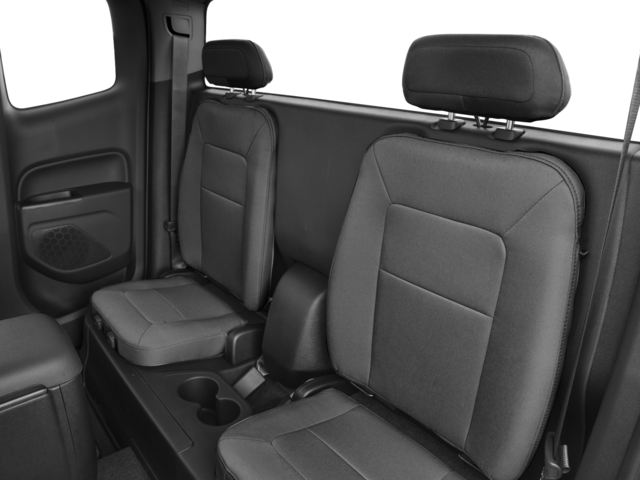

• Second Head Room (in): 36.70
• Second Leg Room (in): 28.60
• Second Shoulder Room (in): 57.30
• Second Hip Room (in): 52.20
• Summary

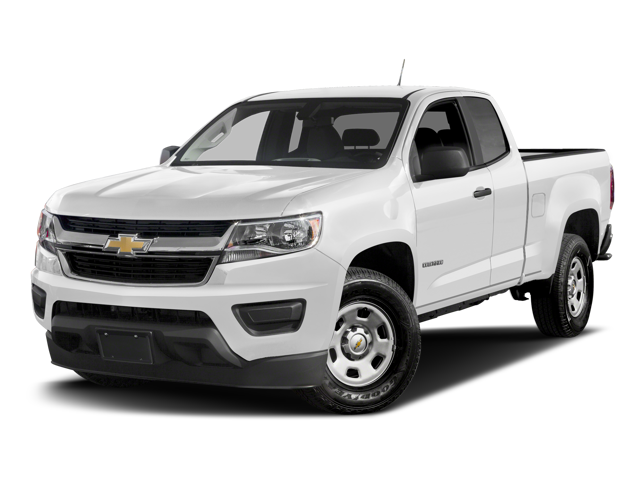

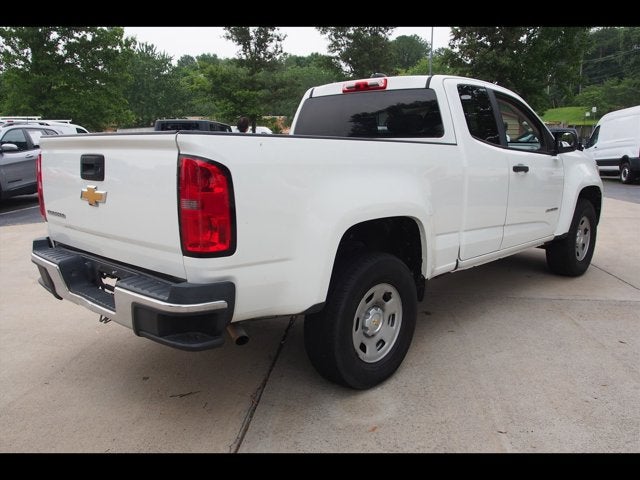

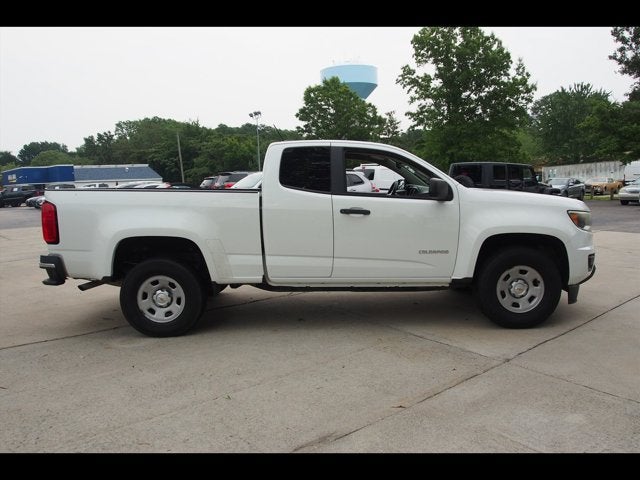

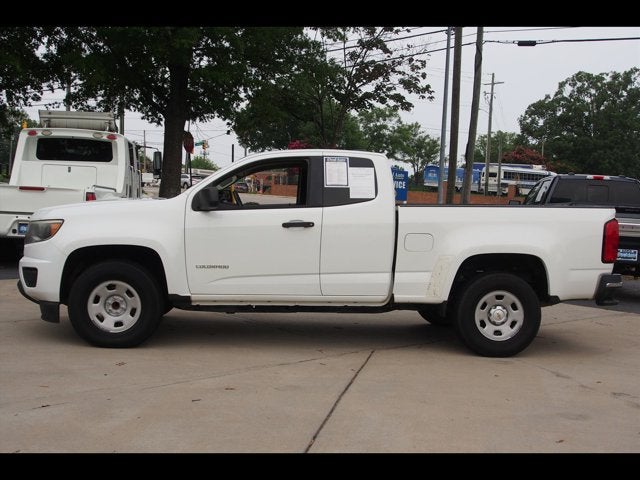

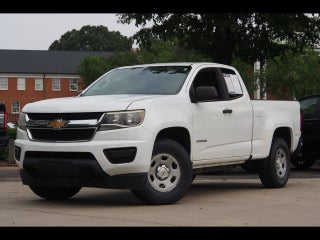

• Vehicle Name: Chevrolet Colorado

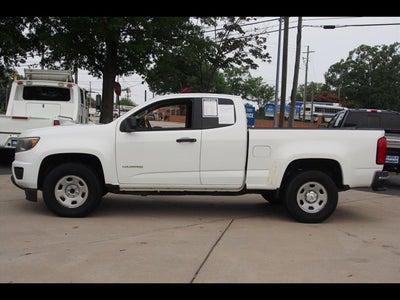

• Body Style: Extended Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.1
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.0
